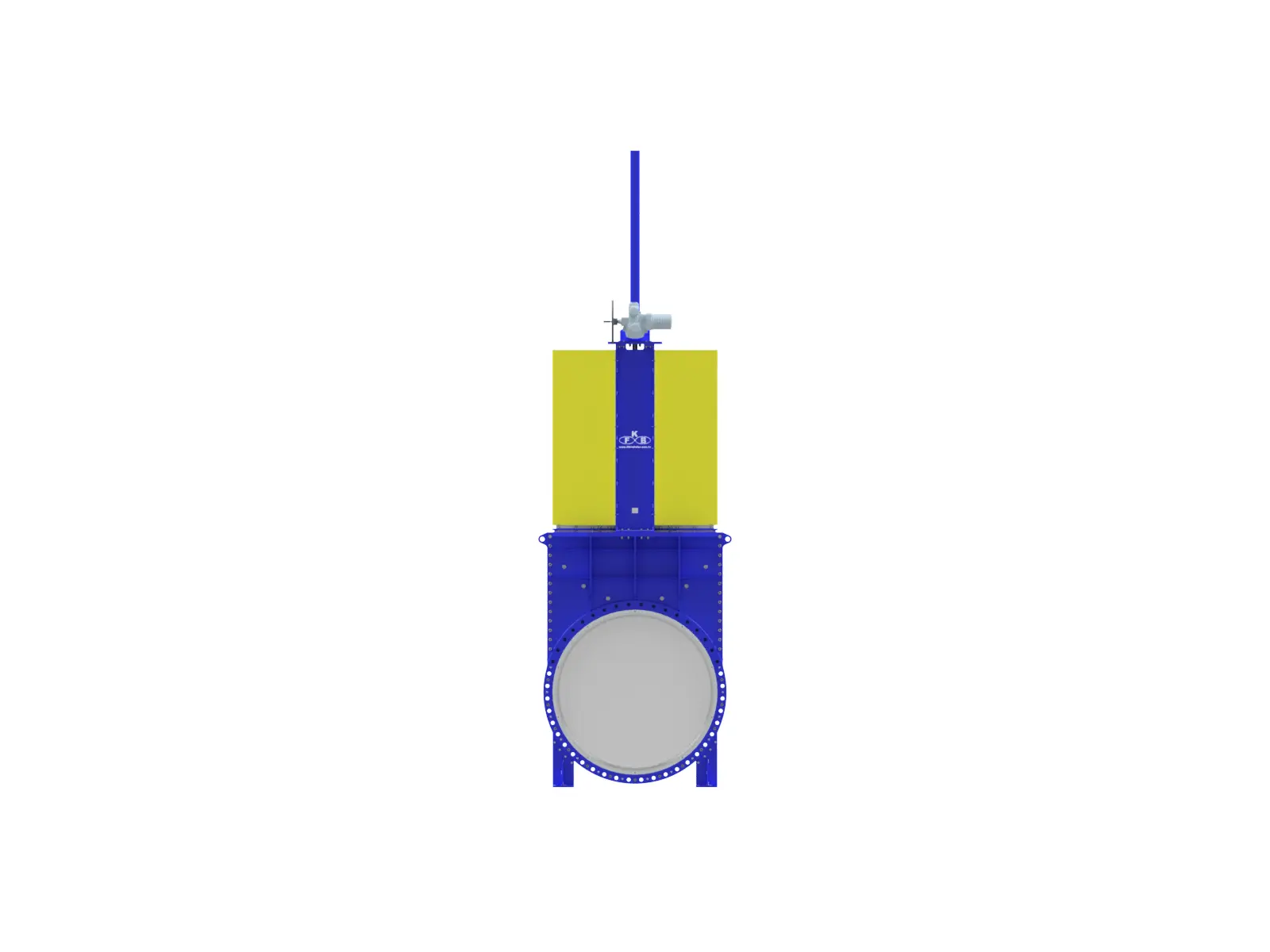

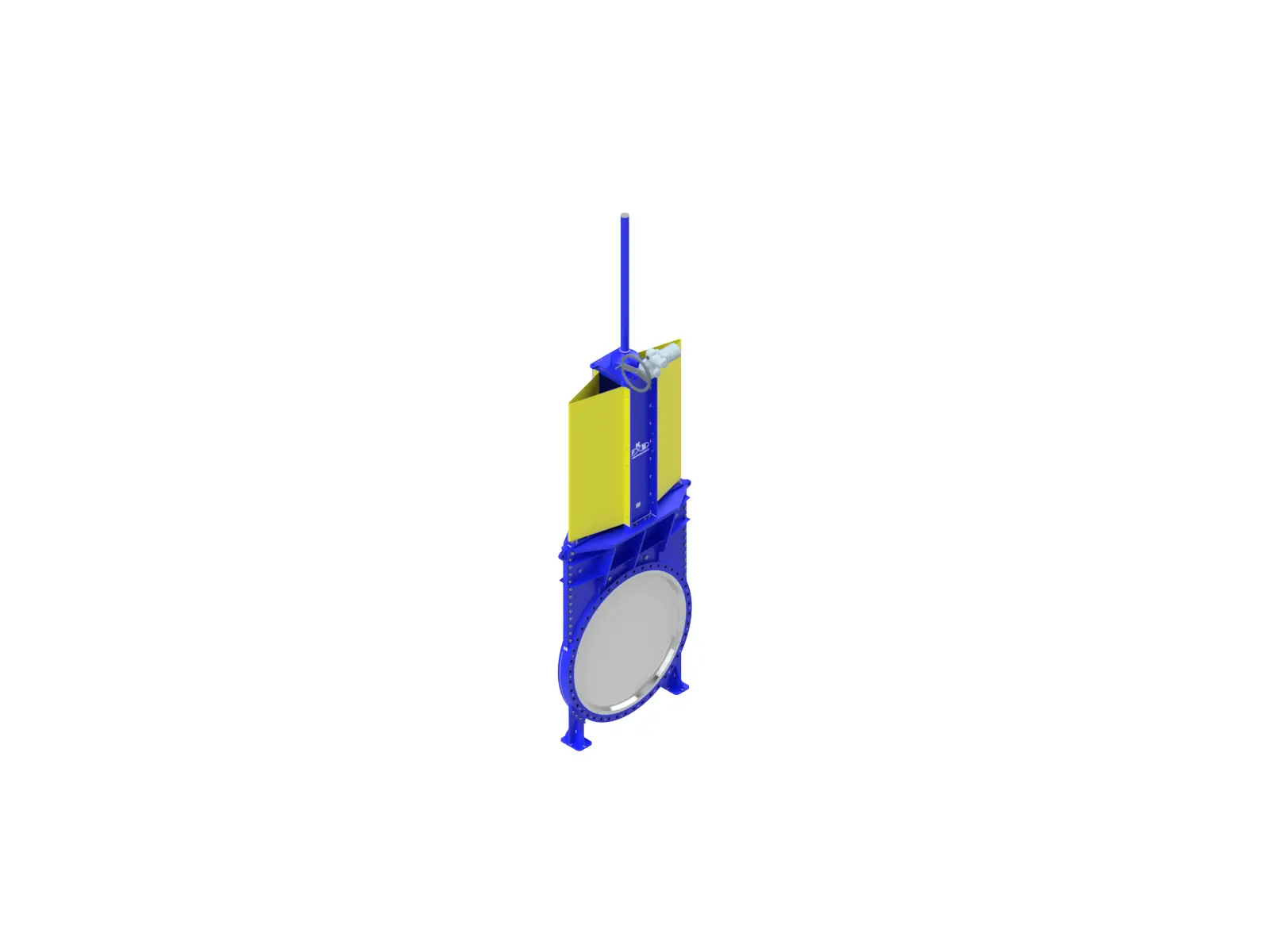

VGU-01

The VAG's Standard Knife Gate Valve - VGU01 are lightweight equipment that can block or control the flow of fluids. It is commonly used in general liquid processes, such as water, wastewater, pulp, and paper.

VGU-01

Main features

  • Suitable for Mass/Pulp up to 7%
  • On/Off (Open/Closed) and Control Function
  • High Performance with Coated Passage
  • 100% Tightness
  • Bidirectional Flow
  • Medium/High Operation Cycle
  • Seat Type Perimeter Seal U
  • Seat Material: EPDM Rubber or Viton
  • NR12 Protection Screen (Optional)
  • Fixing: ANSI B16.5 -150lbs or DIN PN10
  • Pressure up to 10 bar (150psi)
  • VGU 01 - DN 2” (50mm) up to 32” (800mm)
  • VGU 01G - Size DN 36” (800mm) up to 72” (1800)
  • Manual, Pneumatic, Hydraulic and Electric Drive
  • Accessories: Solenoid Valve, Position Sensor, etc.
  • Similar Stafsjo WB and Orbinox EB

Main Applications

  • Water and Wastewater
  • Pulp and paper
  • Sugar and alcohol
  • Refrigerator and Grease Store
  • Hydroelectric plants and PCH's
  • Petrochemical
  • Bioenergy and Biomass
